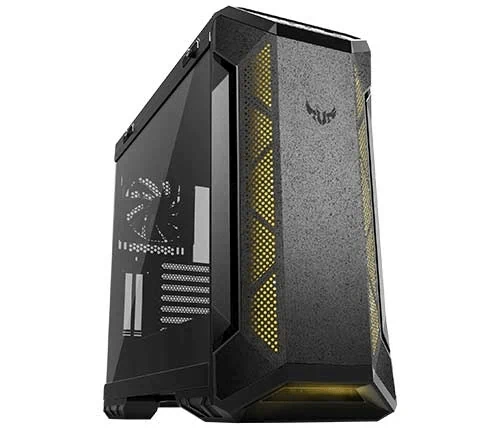

ASUS TUF GAMING GT501 CASE

• Case Size

Mid Tower

•

  ---

  Motherboard Support

EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX

•

  ---

  Drive Bays

3 x 2.5" Bay
4 x 2.5"/3.5" Combo Bay

•

  ---

  Expansion Slots

7
2 (additional vertical)

•

  ---

  Front I/O Port

1 x Headphone+Microphone
2 x USB 3.1 Gen1

•

  ---

  Tempered Glass

Left Side

•

  ---

  Radiator Support (Front)

120 mm
140 mm
240 mm
280 mm
360 mm

•

  ---

  Radiator Support (Top)

120 mm
140 mm
240 mm
280 mm
360 mm

•

  ---

  Radiator Support (Rear)

120 mm
140 mm

•

  ---

  Cooling Support (Front)

3 x 120 mm
2 x 140 mm

•

  ---

  Cooling Support (Top)

3 x 120 mm
2 x 140 mm

•

  ---

  Cooling Support (Rear)

1 x 120 mm
1 x 140 mm

•

  ---

  Pre-installed Fans (Front)

3 x 120 mm
RGB

•

  ---

  Pre-installed Fans (Rear)

1 x 140 mm
PWM

•

  ---

  Maximum CPU Cooler Height

180mm

•

  ---

  Maximum GPU Length

420mm

•

  ---

  Maximum PSU Length

240mm

•

  ---

  Removable Dust Filters

Front
Top
Bottom

•

  ---

  Maximum Cable Management Space

30 mm

•

  ---

  Dimensions

552 x 251 x 545 mm

•

  ---

  Weight

10.5Kg
